PC
lens
Polycarbonate Lens
Lens and optical package are designed to maintain uniform distribution and visual comfort on site.
Why Specify This Fixture
Product Highlights

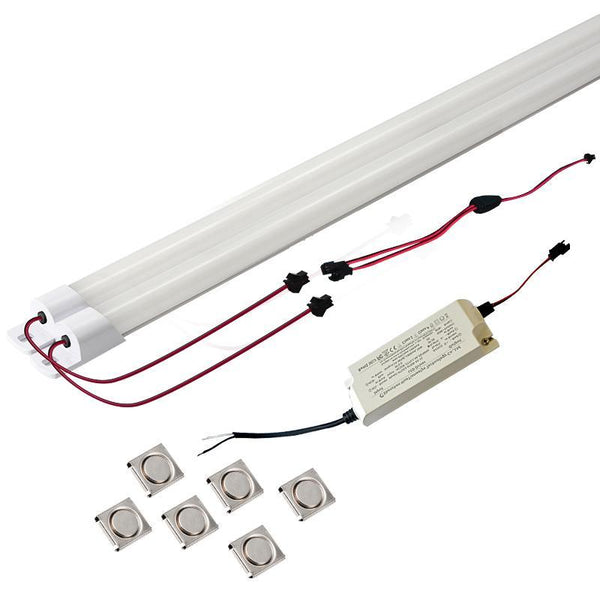

Magnetic Retrofit Kit
277V
max input
0-10v Dimming
Low-voltage dimming leads support controls integration and reduced after-hours energy consumption.
10yr
warranty
Long-Term Warranty
Warranty coverage supports long-horizon maintenance planning for commercial retrofit projects.
PIR
sensor
Integrated Motion Sensor
Sensor-ready architecture supports occupancy/daylight automation and lower operating energy costs.
Product Configuration Matrix
16W - 2,132 Lumens · 4000K Natural White · 2 LED Strips
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Color Temperature | Number of LED Strips | Status |
|---|---|---|---|---|
| JSK-2-2-16W-40K | 16W - 2,132 Lumens | 4000K Natural White | 2 LED Strips | |
| JSK-2-2-16W-50K | 16W - 2,132 Lumens | 5000K Daylight White | 2 LED Strips | |
| JSK-2-3-24W-35K | 24W - 3,114 Lumens | 3500K Warm White | 3 LED Strips | |
| JSK-2-3-24W-40K | 24W - 3,139 Lumens | 4000K Natural White | 3 LED Strips | |
| JSK-2-3-24W-50K | 24W - 3,145 Lumens | 5000K Daylight White | 3 LED Strips |
Performance Specifications
All listed models use 100-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| JSK-2-3-24W-35K | 24W | 3,135 lm | 3500K | ≥ 80 | ≥ 0.9 | |
| JSK-2-3-24W-40K | 24W | 3,135 lm | 4000K | ≥ 80 | ≥ 0.9 | |
| JSK-2-3-24W-50K | 24W | 3,145 lm | 5000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-2-24W | 24W | 3,128 lm | 4000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-2-36W-40K | 36W | 4,660 lm | 4000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-2-36W-40K-DTO | 36W | 4,829 lm | 4000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-2-36W-50K | 36W | 4,675 lm | 5000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-2-36W-50K-DTO | 36W | 5,026 lm | 5000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-3-54W-40K-DTO | 54W | 7,196 lm | 4000K | ≥ 80 | ≥ 0.9 | |
| JSK-4-4-72W-40K-DTO | 72W | 8,645 lm | 4000K | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 100-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <24% full load |
| Optical | |
| CCT | 3500K / 4000K / 5000K |
Compatible Accessories
| Catalog Number | Description | Spec Sheet | Actions |
|---|---|---|---|
|
PIR Motion Sensor 120-277V Indoor Side Mount PhotoMotion™ Jarvis Lighting | Spec Sheet | View Product |
|
PhotoMotion™ Custom Programming Remote Control PhotoMotion | Spec Sheet | View Product |
