120-277V
universal
Voltage Compatibility
Accepts universal 120-277V 50/60Hz input across standard commercial service.
Why Specify This Fixture
Product Highlights

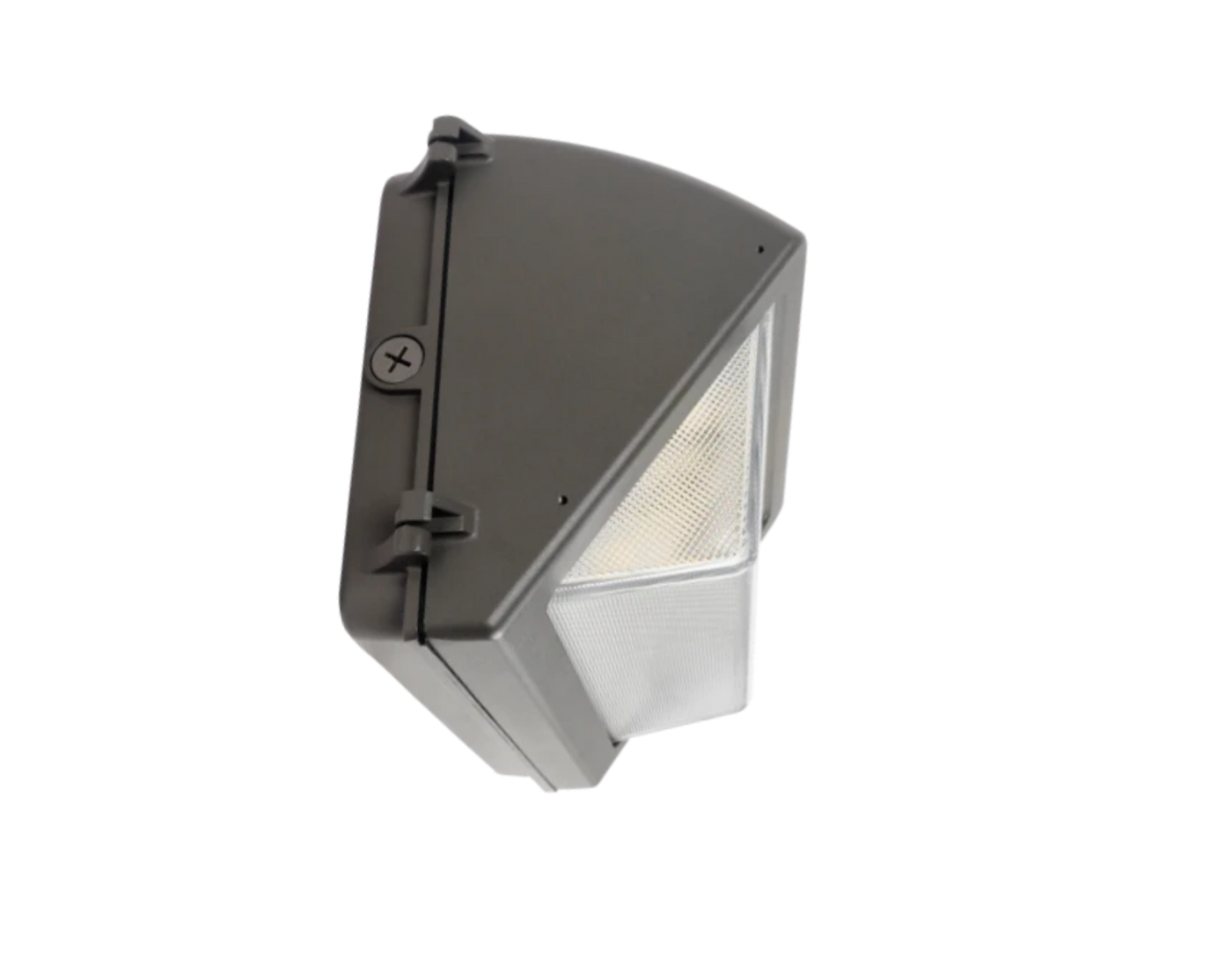

JPACK-G2 Wall Pack
Product Configuration Matrix
60W - 7,766 Lumens · 5000K - Daylight White
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Color Temperature |
|---|---|---|
| JPACK-G2-7L-50K-UV-BRZ-DM | 60W - 7,766 Lumens | 5000K - Daylight White |
| JPACK-G2-10L-50K-UV-BRZ-DM | 80W - 10,008 Lumens | 5000K - Daylight White |
| JPACK-G2-3L-50-UV-BRZ-DM | 28W - 3,360 Lumens | 5000K - Daylight White |
Performance Specifications
| Model # | Wattage | Lumens | CCT | Input | CRI | PF | |
|---|---|---|---|---|---|---|---|
| 50K-5000K-UV-120-277V-BRONZE-DM-1 | — | — | 5000K | 120-277V | — | — | |
| JPACK-G2-10L-50K-UV-DM | 80W | 10,008 lm | 5000K | 120-277V 50/60Hz | ≥ 80 | ≥ 0.9 | |
| JPACK-G2-3L-50K-UV-DM | 28W | 3,360 lm | 5000K | 120-277V 50/60Hz | ≥ 80 | ≥ 0.9 | |
| JPACK-G2-7L-50K-UV-DM | 60W | 7,766 lm | 5000K | 120-277V 50/60Hz | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -40°C to 40°C Ambient (-40°F to 104°F) |
| Optical | |
| CCT | 5000K |
| Physical | |
| Weight | 3L 9.0 lbs; 7L 9.4lbs; 10L 9.4lbs |
| Controls | |
| Dimming | 0-10V dimming standard on JPACK-G2 series. |
| Motion Sensor | Compatible with most controls, including motion sensors. |
Compatible Accessories
Other Accessories
| Catalog Number | Description | Spec Sheet | Actions |
|---|---|---|---|
|
Side Mount PhotoMotion™ 120-277V PIR Motion Sensor for Light Fixture PhotoMotion | Spec Sheet | View Product |
|
PhotoMotion™ Custom Programming Remote Control PhotoMotion | Spec Sheet | View Product |
