AL
housing
Die-cast Housing
Engineered housing materials improve durability and thermal performance in demanding site conditions.
Why Specify This Fixture
Product Highlights

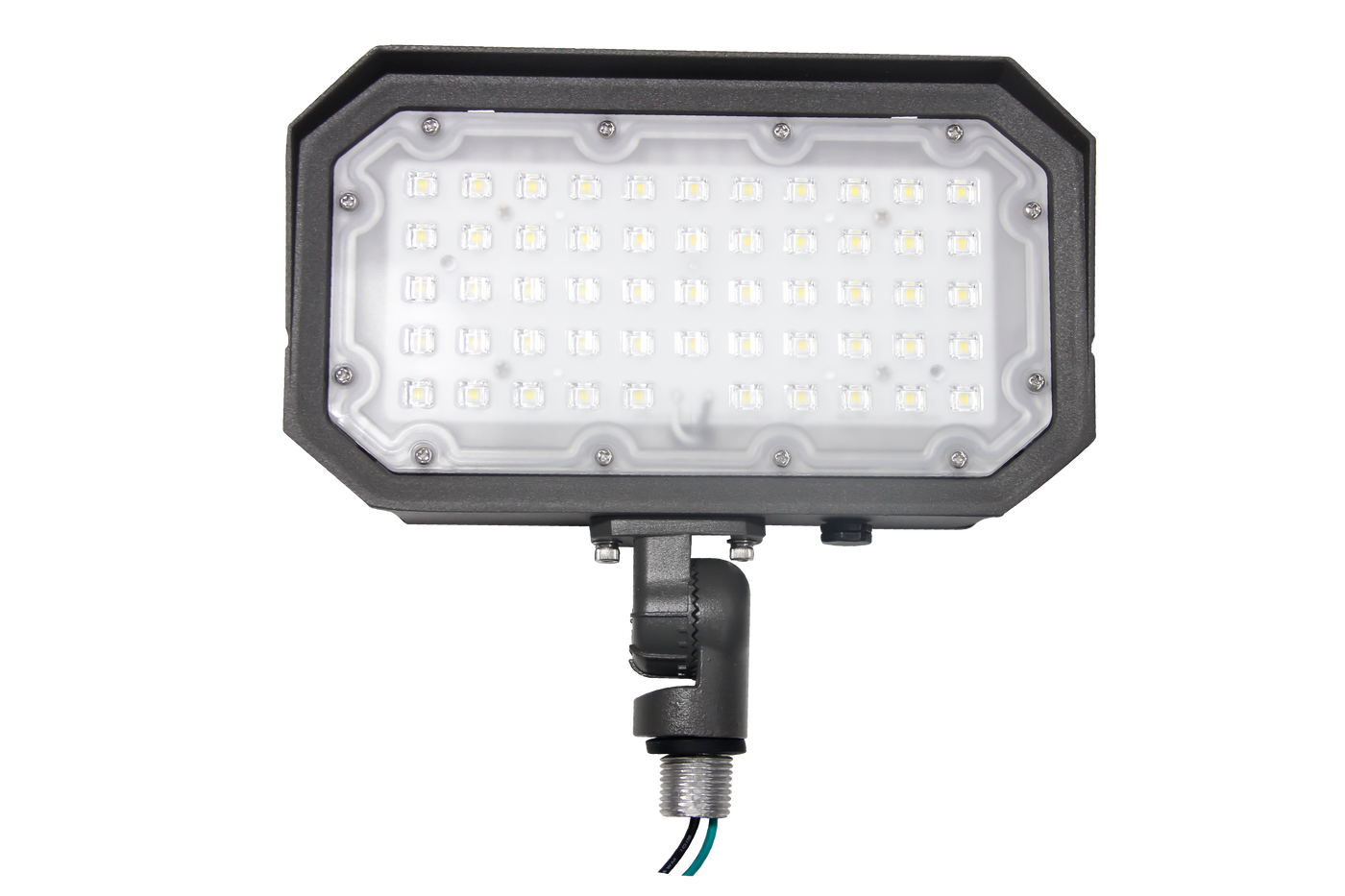

FLD Series
PC
lens
Impact-resistant Lens
Lens and optical package are designed to maintain uniform distribution and visual comfort on site.
3-in-1
selectable
Adjustable CCT & Wattage
Field-selectable wattage and CCT settings allow one SKU to cover multiple light-level targets.
10yr
warranty
Long-Term Warranty
Warranty coverage supports long-horizon maintenance planning for commercial retrofit projects.
Product Configuration Matrix
15W - 1,833 Lumens · KM - Knuckle Mount · No Photocell
Click another row to change the selected SKU and quote target.
| SKU | Wattage-Lumens | Mounting Option | Photocell Option | Status |
|---|---|---|---|---|
| FLD-G2-1L-50K-BRZ-KM-DM | 15W - 1,833 Lumens | KM - Knuckle Mount | No Photocell | |
| FLD-G2-3L-50K-BRZ-KM-DM | 30W - 3,725 Lumens | KM - Knuckle Mount | No Photocell | |
| FLD-G2-9L-50K-BRZ-KM-DM | 70W - 9,175 Lumens | KM - Knuckle Mount | No Photocell | |
| FLD-G2-9L-50K-BRZ-KM-DM+A299 | 70W - 9,175 Lumens | KM - Knuckle Mount | 120- 277V Button Photocell | |
| FLD-G2-9L-50K-BRZ-SFM-DM | 70W - 9,175 Lumens | SFM - Slipfitter Mount | No Photocell | |
| FLD-G2-9L-50K-BRZ-SFM-DM+A299 | 70W - 9,175 Lumens | SFM - Slipfitter Mount | 120- 277V Button Photocell | |
| FLD-G2-9L-50K-BRZ-YK-DM | 70W - 9,175 Lumens | YK - Yoke Mount | No Photocell | |
| FLD-G2-9L-50K-BRZ-YK-DM+A299 | 70W - 9,175 Lumens | YK - Yoke Mount | 120- 277V Button Photocell | |
| FLD-G2-11L-50K-BRZ-SFM-DM | 90W - 11,984 Lumens | SFM - Slipfitter Mount | No Photocell | |
| FLD-G2-11L-50K-BRZ-SFM-DM+A299 | 90W - 11,984 Lumens | SFM - Slipfitter Mount | 120- 277V Button Photocell | |
| FLD-G2-11L-50K-BRZ-YK-DM | 90W - 11,984 Lumens | YK - Yoke Mount | No Photocell | |
| FLD-G2-11L-50K-BRZ-YK-DM+A299 | 90W - 11,984 Lumens | YK - Yoke Mount | 120- 277V Button Photocell | |
| FLD-G2-20L-50K-BRZ-YK-DIM | 150W - 18,110 Lumens | YK - Yoke Mount | No Photocell | |
| FLD-G2-20L-50K-BRZ-YK-DIM+A299 | 150W - 18,110 Lumens | YK - Yoke Mount | 120- 277V Button Photocell | |
| FLD-G2-20L-50K-BRZ-YK-DIM+A300 | 150W - 18,110 Lumens | YK - Yoke Mount | 120V Button Photocell | |
| FLD-G2-3ML6-30K/40K/50K-BRZ-KM-DIM | 30W/40W/50W - 3,600/5,300/6,512 Lumens | KM - Knuckle Mount | No Photocell | |
| FLD-G2-13ML19-30K/40K/50K-BRZ-SFM-DIM | 100W/135W/150W - 13,000 / 17,550 / 19,500 Lumens | SFM - Slipfitter Mount | No Photocell |
Performance & DLC Listings
| Model # | Wattage | Lumens | CCT | DLC ID | CRI | PF | |
|---|---|---|---|---|---|---|---|
| FLD-G2-11L-50K | 87.7W | 11,382 lm | 5000K | S-R0VJ5A | ≥ 84 | ≥ 0.942 | |
| FLD-G2-1L-50K | 14.3W | 1,790 lm | 5000K | S-HGXLUJ | ≥ 84 | ≥ 0.907 | |
| FLD-G2-20L-50K | 142.9W | 18,110 lm | 5000K | S-WPFCAQ | ≥ 84 | ≥ 0.947 | |
| FLD-G2-3L-50K | 28.3W | 3,535 lm | 5000K | S-8AX7C3 | ≥ 84 | ≥ 0.921 | |
| FLD-G2-9L-50K | 70.3W | 8,838 lm | 5000K | S-8ADO6Y | ≥ 84 | ≥ 0.935 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -40°C to 45° C Ambient (-40°F to 113°F) |
| Optical | |
| CCT | 5000K |
