277V
max input
Voltage Compatibility
Supports 100-277V 50/60Hz input to match site power requirements.
Why Specify This Fixture
Product Highlights

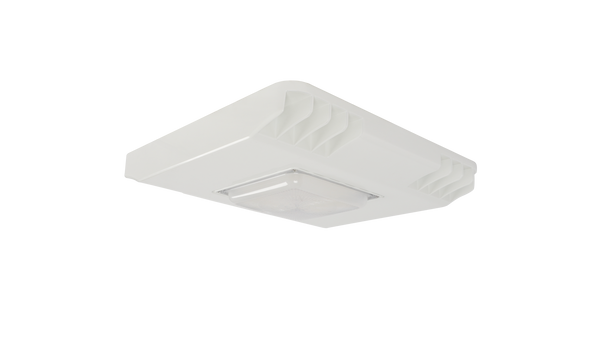

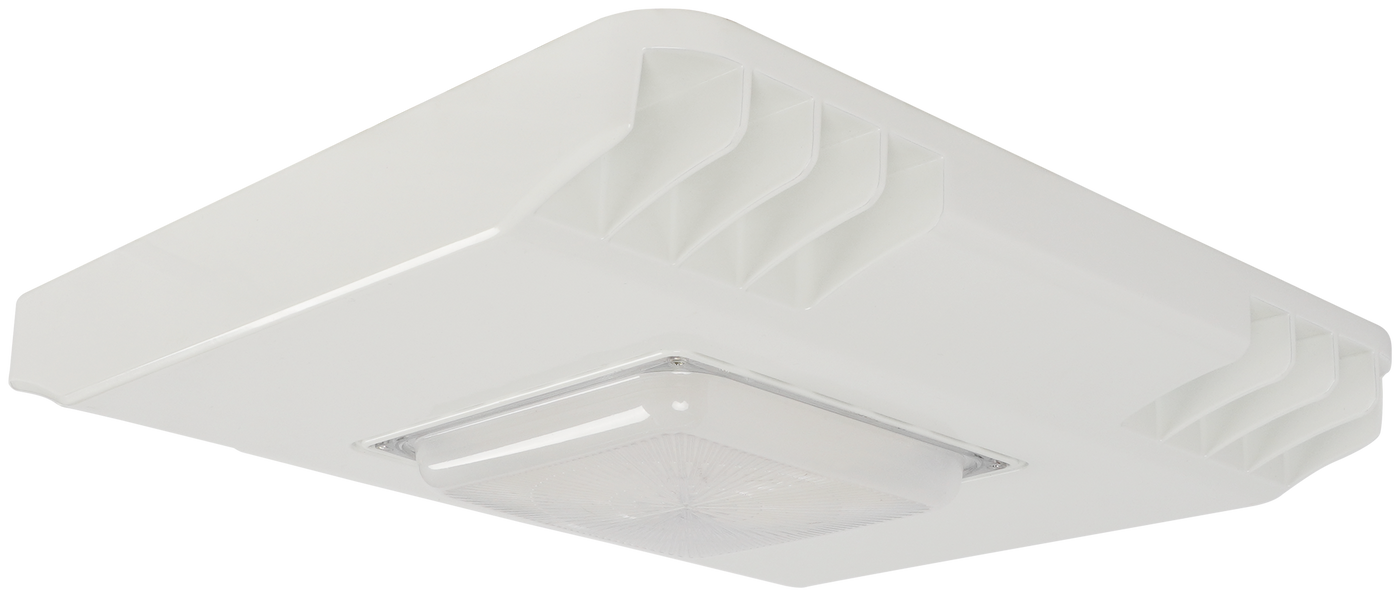

JDS Diamond
Product Configuration Matrix
100W/120W/150W - 13,000/15,600/20,842 Lumens · 3500K/4000K/5000K
Click another row to change the selected SKU and quote target.
| SKU | Wattage-Lumens | Color Temperature | Status |
|---|---|---|---|
| JDS-V-13ML19-35K/40K/50K-YY-UV-DRP-WHT-DM | 100W/120W/150W - 13,000/15,600/20,842 Lumens | 3500K/4000K/5000K |
Performance Specifications
All listed models use 100-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| JDS-12L-50K-DM | 100W | 12,677 lm | 5000K | ≥ 80 | — | |
| JDS-20L-50K-DM | 150W | 20,000 lm | 5000K | ≥ 80 | — |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 100-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -40°C to 40° C Ambient (-40°F to 104°F) |
