3-in-1
selectable
Adjustable CCT & Wattage
Field-selectable wattage and CCT settings allow one SKU to cover multiple light-level targets.
Why Specify This Fixture
Product Highlights

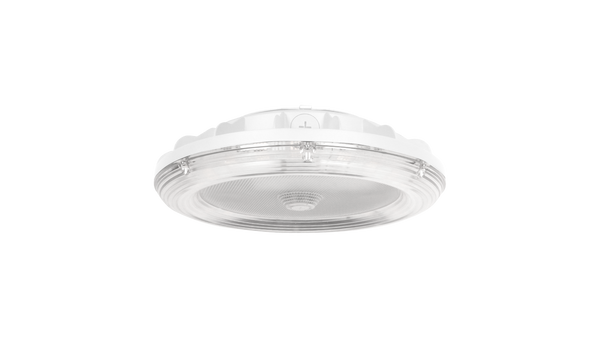

PGR PGS Parking Garage Series
Z10
receptacle
Z10 Accessory Ready
Pre-installed Z10 receptacle supports plug-in photocell, occupancy, and wireless control modules without rewiring.
10yr
warranty
Long-Term Warranty
Warranty coverage supports long-horizon maintenance planning for commercial retrofit projects.
120-480V
multi-voltage
Voltage Compatibility
Supports both 120-277V and 277-480V 50/60Hz input — one product family covers low-voltage and high-voltage site service.
Product Configuration Matrix
45W/60W/80W - 6,422/8,701/11,559 Lumens · 3000K / 4000K / 5000K · 120-277V
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Color Temperature | Voltage |
|---|---|---|---|
| PGR-V-6ML11-30K/40K/50K-WHT-Z10R | 45W/60W/80W - 6,422/8,701/11,559 Lumens | 3000K / 4000K / 5000K | 120-277V |
| PGR-V-6ML11-30K/40K/50K-HV-WHT-Z10R | 45W/60W/80W - 6,422/8,701/11,559 Lumens | 3000K / 4000K / 5000K | 277-480V |
Performance Specifications
All listed models use 120-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| PGR-V-6ML11-30K/40K/50K | 45W / 60W / 80W | 6,422 / 8,701 / 11,559 lm | 3500K / 4000K / 5000K | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -40°C to 40°C Ambient (-40°F to 104°F) |
| Optical | |
| CCT | 3500K/4000K/5000K |
| Physical | |
| Weight | Z10R 1.0lbs |
Compatible Accessories
Networked Lighting Controls
| Catalog Number | Description | Spec Sheet | Actions |
|---|---|---|---|
|
Jarvis Link Z10 Wireless Control Module (WCM) Bluetooth Z10 fixture controller; 0-10V dimming; IP65; White/Black/Bronze | Spec Sheet | View Product |
|
Jarvis Link Z10 Long Range Wireless Control Module — Clear Housing Long-range Z10 fixture controller; 1,200ft mesh; 0-10V dimming; IP65 | Spec Sheet | View Product |
|
Jarvis Link Z10 PIR Motion Sensor + Photocell — Indoor/Outdoor Plug-in Z10 PIR + photocell; 8-40ft mount; UL8750 listed | Spec Sheet | View Product |
Other Accessories
| Catalog Number | Description | Spec Sheet | Actions |
|---|---|---|---|
|
Z10 PhotoMotion™ Custom Programming Remote Control PhotoMotion | Spec Sheet | View Product |
|
Side Mount PhotoMotion™ 120-277V PIR Motion Sensor for Light Fixture PhotoMotion | Spec Sheet | View Product |
|
PhotoMotion™ Custom Programming Remote Control PhotoMotion | Spec Sheet | View Product |
