277V
max input
Voltage Compatibility
Supports 100-277V 50/60Hz input to match site power requirements.
Why Specify This Fixture
Product Highlights

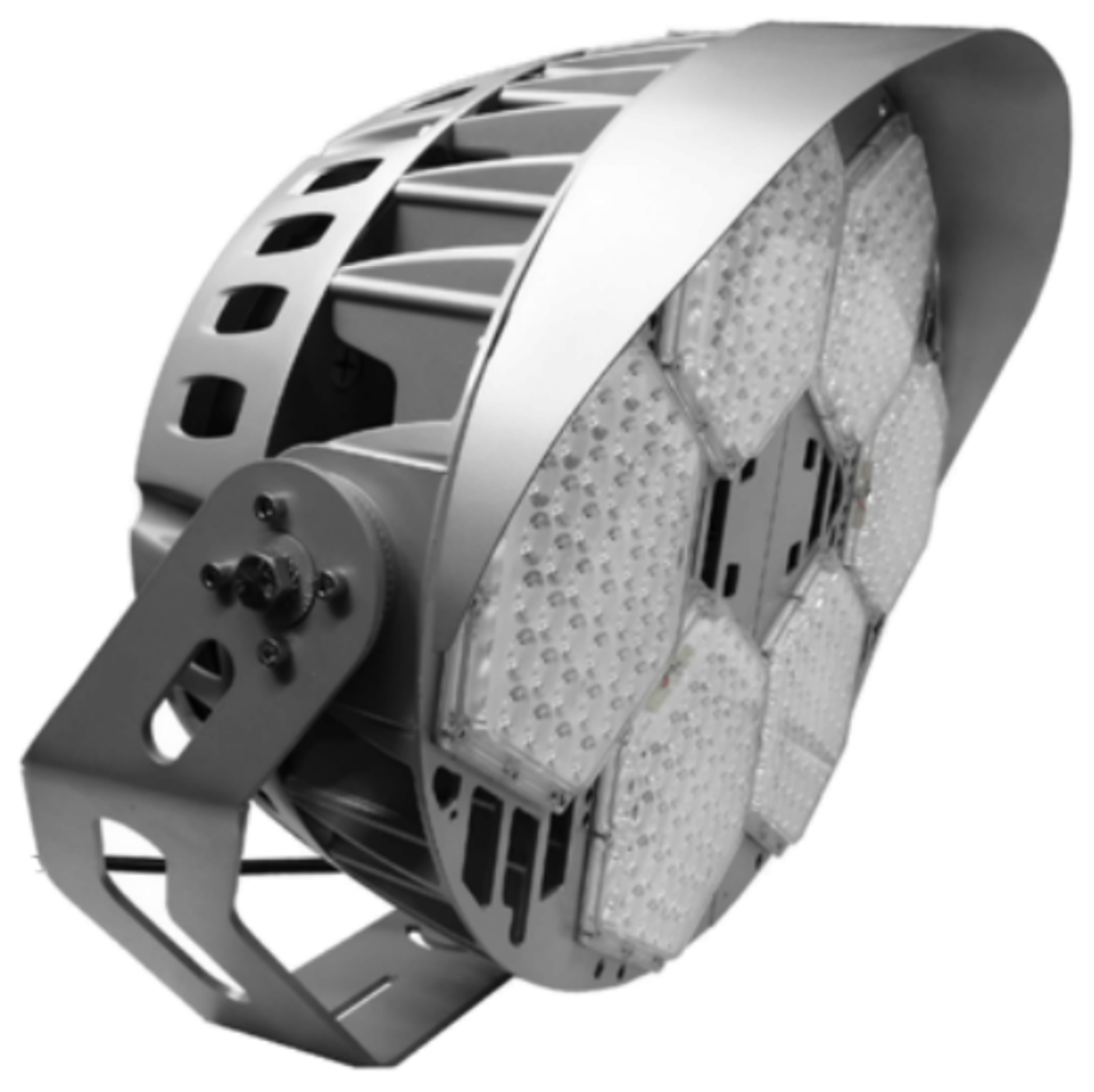

JSAL Area Light
Product Configuration Matrix
400W - 56,800 Lumens · 100-277V · 5000K Daylight White
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Voltage | Color Temperature | Status |
|---|---|---|---|---|
| JSPORT-W-56L-50K-UV-MB-B2-LS-SMG-DTO | 400W - 56,800 Lumens | 100-277V | 5000K Daylight White | |
| JSPORT-W-85L-50K-UV-MB-B2-LS-SMG-DTO | 600W - 85,200 Lumens | 100-277V | 5000K Daylight White | |
| JSPORT-W-85L-50K-HV-MB-B2-LS-SMG-DTO | 600W - 85,200 Lumens | 277-480V | 5000K Daylight White | |
| JSPORT-W-56L-50K-HV-MB-B2-LS-SMG-DTO | 400W - 56,800 Lumens | 277-480V | 5000K Daylight White |
Performance Specifications
All listed models use 100-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| JSPORT-56L-50K-MB-B2-LS-BLK | 400W | 56,000 lm | 5000K | ≥ 70 | ≥ 0.95 | |
| JSPORT-56L-50K-NB-B2-LS-BLK | 400W | 56,000 lm | 5000K | ≥ 70 | ≥ 0.95 | |
| JSPORT-56L-57K-MB-B2-LS-BLK-DM | 400W | 50,000 lm | 5700K | ≥ 70 | ≥ 0.95 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 100-277V 50/60Hz |
| Power Factor | > 0.95 at full load |
| Thd | <15% full load |
| Operating temp | -40°C to 45° C Ambient (-40°F to 113°F) |
| Controls | |
| Dimming | 0-10V dimming can be custom requested |
