30,119
max lumens
High Lumen Output
15ML30 model delivers up to 30,119 lumens at 202W with selectable wattage.
Why Specify This Fixture
Product Highlights
FlexBeam
480V
max input
Dual Voltage Range
Supports 120-277V standard or 277-480V high-voltage input (HV available for 10ML20 model only).
IP66
rating
Wet Location Rated
IP66 rated with die-cast aluminum housing and corrosion-resistant powder coat finish.
Product Configuration Matrix

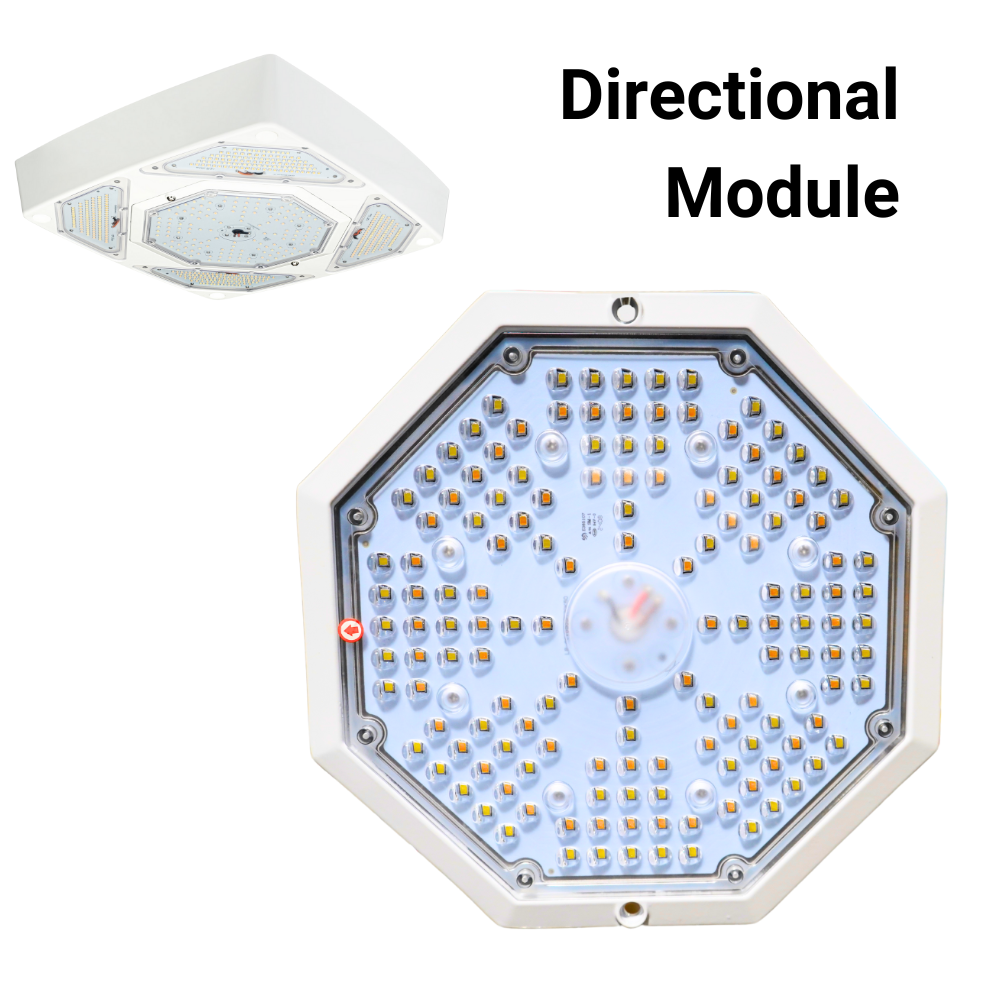

UV · DTO · High Output Module with Directional Optics
Click another row to change the selected SKU and quote target.
| SKU | Voltage | Dimming | Optional Module | Status |
|---|---|---|---|---|
| FLX-10ML20-30/40/50K-YY-UV-DTO-WHT | UV | DTO | None | |
| FLX-10ML20-30/40/50K-YY-UV-DTO-WHT + FLX-A-OCT-AIML | UV | DTO | High Output Module with Directional Optics | |
| FLX-10ML20-30/40/50K-YY-UV-DTO-WHT + FLX-A-OCT-DRPL | UV | DTO | High Output Module with Drop Lens | |
| FLX-10ML20-30/40/50K-YY-UV-DTO-WHT + FLX-A-OCT-FL | UV | DTO | High Output Module with Full Cutoff Optics | |
| FLX-10ML20-30/40/50K-YY-UV-Z10R-WHT | UV | Z10R | None | |
| FLX-10ML20-30/40/50K-YY-UV-Z10R-WHT + FLX-A-OCT-AIML | UV | Z10R | High Output Module with Directional Optics | |
| FLX-10ML20-30/40/50K-YY-UV-Z10R-WHT + FLX-A-OCT-DRPL | UV | Z10R | High Output Module with Drop Lens | |
| FLX-10ML20-30/40/50K-YY-UV-Z10R-WHT + FLX-A-OCT-FL | UV | Z10R | High Output Module with Full Cutoff Optics | |
| FLX-10ML20-30/40/50K-YY-HV-DTO-WHT | HV | DTO | None | |
| FLX-10ML20-30/40/50K-YY-HV-DTO-WHT + FLX-A-OCT-AIML | HV | DTO | High Output Module with Directional Optics | |
| FLX-10ML20-30/40/50K-YY-HV-DTO-WHT + FLX-A-OCT-DRPL | HV | DTO | High Output Module with Drop Lens | |
| FLX-10ML20-30/40/50K-YY-HV-DTO-WHT + FLX-A-OCT-FL | HV | DTO | High Output Module with Full Cutoff Optics | |
| FLX-10ML20-30/40/50K-YY-HV-Z10R-WHT | HV | Z10R | None | |
| FLX-10ML20-30/40/50K-YY-HV-Z10R-WHT + FLX-A-OCT-AIML | HV | Z10R | High Output Module with Directional Optics | |
| FLX-10ML20-30/40/50K-YY-HV-Z10R-WHT + FLX-A-OCT-DRPL | HV | Z10R | High Output Module with Drop Lens | |
| FLX-10ML20-30/40/50K-YY-HV-Z10R-WHT + FLX-A-OCT-FL | HV | Z10R | High Output Module with Full Cutoff Optics |
Performance & DLC Listings
| Model # | Wattage | Lumens | CCT | Input | DLC ID | CRI | PF | |
|---|---|---|---|---|---|---|---|---|
| FLX-10ML20-30K/40K/50K-YY-UV-DTO | 80W / 110W / 150W | 10,645 / 15,400 / 21,290 lm | 3000K / 4000K / 5000K | 120-277V or 277-480V 50/60Hz | S-J3M3LG | ≥ 80 | ≥ 0.9 | |
| FLX-15ML30-50K-YY-UV-DTO | 101W / 134W / 202W | 15,060 / 19,787 / 30,119 lm | 5000K | 120-277V 50/60Hz | S-L1C3HC | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz or 277-480V 50/60Hz |
| Power Factor | > 0.95 at full load |
| Thd | <13% full load |
| Operating temp | -25°C to 45°C Ambient (-14°F to 113°F) |
| Surge protection | Internal 6kV surge protection standard; optional 10kV field-installed upgrade available |
| Optical | |
| CCT | 3000K / 4000K / 5000K selectable (50K factory fixed on 15ML30) |
| Cri range | Minimum CRI 70 at 5000K / Minimum CRI 90 at 3000K |
| Optics | Impact-resistant UV-resistant polycarbonate; optional High Output Modules (full cutoff, drop lens, directional) |
| Warranty | |
| Years | 10 |
| Projected lifetime | 100,000 hours |
