3-in-1
selectable
Adjustable CCT & Wattage
Field-selectable wattage and CCT settings allow one SKU to cover multiple light-level targets.
Why Specify This Fixture
Product Highlights

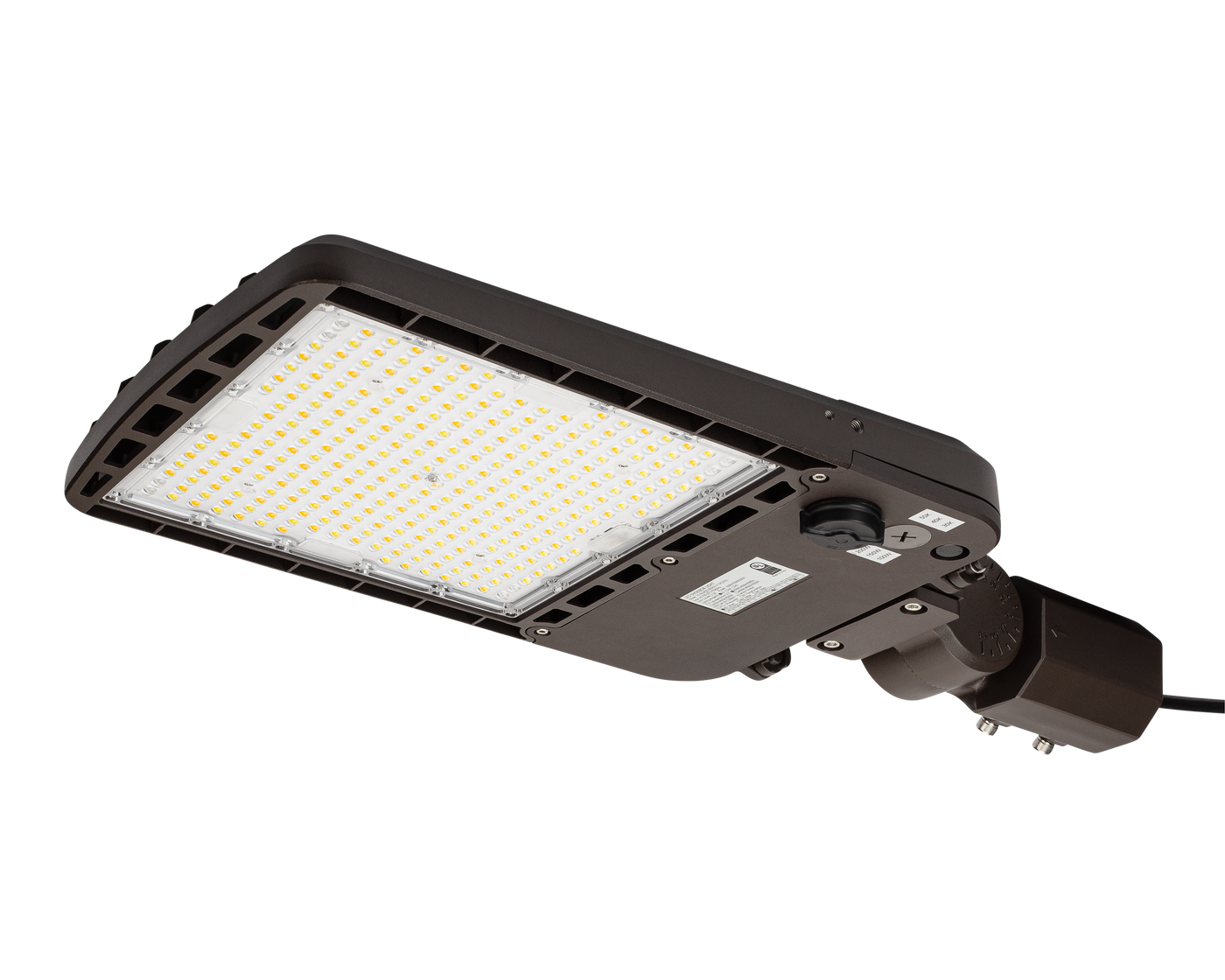

JSAL Area Light
Z10
receptacle

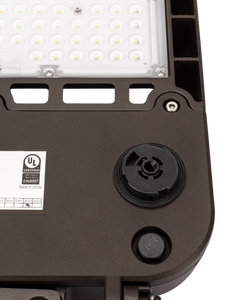

Z10 Accessory Ready
Pre-installed Z10 receptacle supports plug-in photocell, occupancy, and wireless control modules without rewiring.
10yr
warranty
Long-Term Warranty
Warranty coverage supports long-horizon maintenance planning for commercial retrofit projects.
480V
max input
Voltage Compatibility
Supports 120-277V or 277-480V 50/60Hz input to match site power requirements.
Product Configuration Matrix
100W - 14,412 Lumens · 5000K Daylight White · 120-277V 50/60Hz
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Color Temperature | Voltage | Status |
|---|---|---|---|---|
| LED Fixture (Mount sold separately) JSAL-G2-14L-50K-UV-T3-BRZ-Z10R | 100W - 14,412 Lumens | 5000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-14L-40K-UV-T3-BRZ-Z10R | 100W - 14,412 Lumens | 4000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-21L-50K-UV-T3-BRZ-Z10R | 150W - 21,919 Lumens | 5000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-21L-40K-UV-T3-BRZ-Z10R | 150W - 21,919 Lumens | 4000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-28L-50K-UV-T3-BRZ-Z10R | 200W - 29,931 Lumens | 5000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-28L-40K-UV-T3-BRZ-Z10R | 200W - 29,931 Lumens | 4000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-35L-50K-UV-T3-BRZ-Z10R | 240W - 35,317Lumens | 5000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-35L-40K-UV-T3-BRZ-Z10R | 240W - 35,317Lumens | 4000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-44L-50K-UV-T3-BRZ-Z10R | 300W - 44,288 Lumens | 5000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-44L-40K-UV-T3-BRZ-Z10R | 300W - 44,288 Lumens | 4000K Daylight White | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-26ML38-30K/40K/50K-HV-T3-BRZ-Z10R | 200W/240W/300W - 26,000/31,200/38,121 Lumens | 3000K / 4000K / 5000K | 277-480V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-13ML26-30K/40K/50K-HV-T3-BRZ-Z10R | 100W/150W/200W - 13,000/19,500/25,625 lm | 3000K / 4000K / 5000K | 277-480V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-28ML42-30K/40K/50K-UV-T3-BRZ-Z10R | 200W/240W/300W - 28,000/33,600/41,783 lm | 3000K / 4000K / 5000K | 120-277V 50/60Hz | |
| LED Fixture (Mount sold separately) JSAL-G2-14ML28-30K/40K/50K-UV-T3-BRZ-Z10R | 100W/150W/200W - 14,000/21,000/27,908 lm | 3000K / 4000K / 5000K | 120-277V 50/60Hz |
Performance & DLC Listings
| Model # | Wattage | Lumens | CCT | Input | DLC ID | CRI | PF | |
|---|---|---|---|---|---|---|---|---|
| JSAL-G2-13ML26-30K/40K/50K-HV-T3 | 198W | 25,625 lm | 3000K | — | S-1VH1HJ | ≥ 73 | ≥ 0.945 | |
| JSAL-G2-14L-40K-UV-T3 | 102.9W | 14,412 lm | 4000K | 120V | S-VNFOAJ | ≥ 83 | ≥ 0.889 | |
| JSAL-G2-14L-50K-UV-T3 | 102.6W | 14,528 lm | 5000K | — | S-FCKWTJ | ≥ 83 | ≥ 0.889 | |
| JSAL-G2-14ML28-30K/40K/50K-UV-T3 | 198.9W | 27,908 lm | 3000K | — | S-8LC392 | ≥ 73 | ≥ 0.948 | |
| JSAL-G2-21L-40K-UV-T3 | 149.7W | 22,093 lm | 4000K | — | S-L52B1N | ≥ 83 | ≥ 0.927 | |
| JSAL-G2-21L-50K-UV-T3 | 149.7W | 21,919 lm | 5000K | — | S-P2ON6J | ≥ 83 | ≥ 0.927 | |
| JSAL-G2-26ML38-30K/40K/50K-HV-T3 | 301W | 38,928 lm | 3000K | 480V | S-KZRT73 | ≥ 73 | ≥ 0.973 | |
| JSAL-G2-28L-40K-UV-T3 | 204.1W | 30,168 lm | 4000K | — | S-NEUJ0M | ≥ 83 | ≥ 0.953 | |
| JSAL-G2-28L-50K-UV-T3 | 204.1W | 29,931 lm | 5000K | — | S-2M961J | ≥ 83 | ≥ 0.953 | |
| JSAL-G2-28ML42-30K/40K/50K-UV-T3 | 304W | 42,560 lm | 3000K | 120V | S-G8VUKY | ≥ 73 | ≥ 0.94 | |
| JSAL-G2-33L-40K-UV-T3 | 238.6W | 35,597 lm | 4000K | — | S-T6KXM3 | ≥ 83 | ≥ 0.962 | |
| JSAL-G2-33L-50K-UV-T3 | 238.6W | 35,317 lm | 5000K | — | S-1CDW0T | ≥ 83 | ≥ 0.962 | |
| JSAL-G2-42L-40K-UV-T3 | 300.7W | 44,288 lm | 4000K | — | S-8195NX | ≥ 83 | ≥ 0.942 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V or 277-480V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -40°C to 45° C Ambient (-40°F to 113°F) |
| Optical | |
| CCT | 3000K / 4000K / 5000K |
Compatible Accessories
| Catalog Number | Description | Action |
|---|---|---|

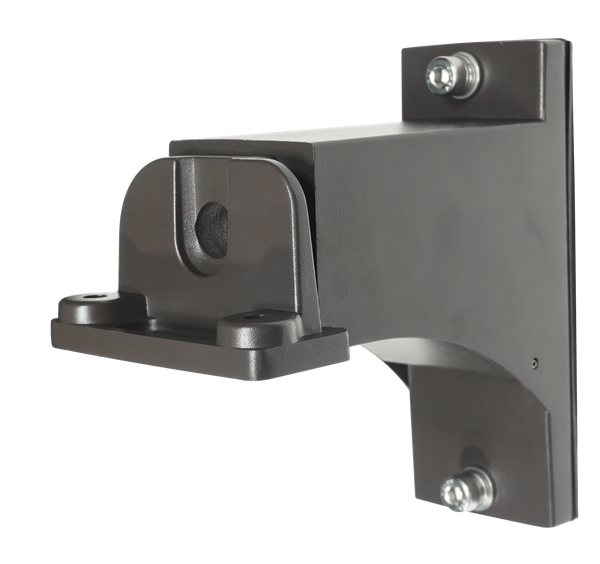

| JSAL-A-QA-BRZ | Bronze/Silver Direct Mounting Arm for JSAL Series Tenons | View Product |

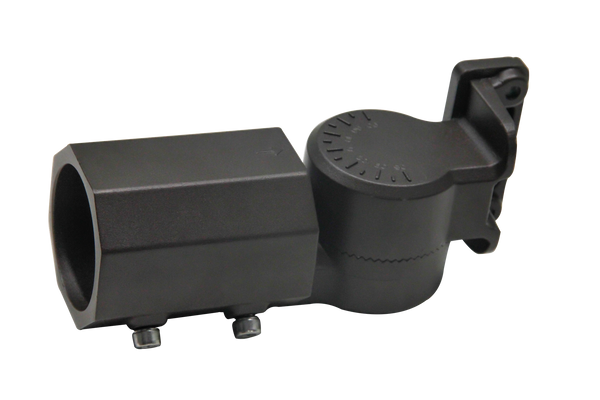

| JSAL-A-SFM-BRZ | Bronze/White Slipfitter Mounting Arm for JSAL Series Tenons | View Product |

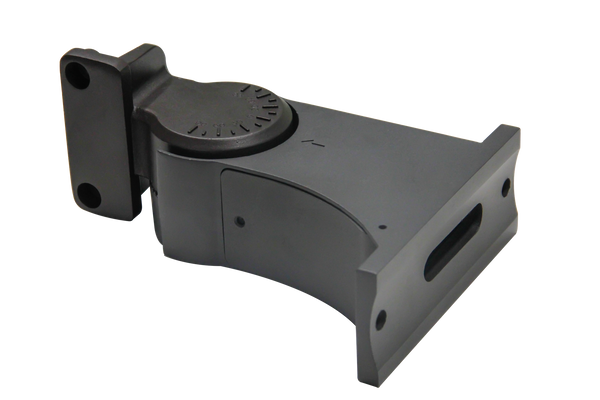

| JSAL-A-TQA-BRZ | Bronze/White Tilt Quick Mounting Arm for JSAL Series Tenons | View Product |
