120-277V
universal
Voltage Compatibility
Accepts universal 120-277V 50/60Hz input across standard commercial service.
Why Specify This Fixture
Product Highlights

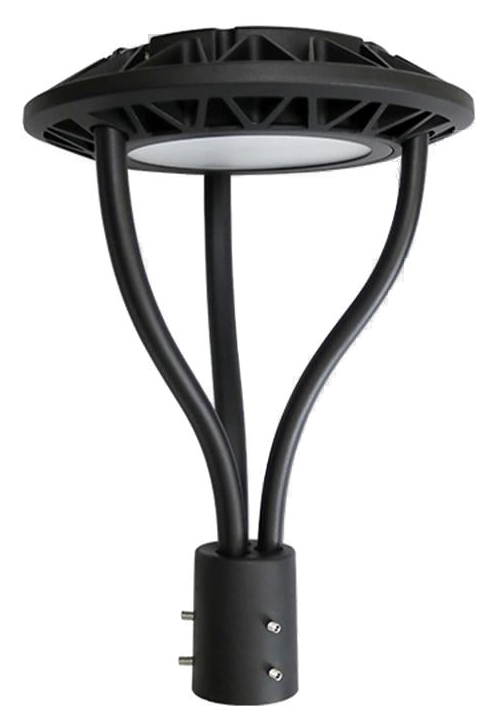

PTL SERIES
Product Configuration Matrix
20W/30W/40W/60W - 3,200/4,800/6,400/9,600 Lumens · 3000K/4000K/5000K Adjustable CCT
Click another row to change the selected SKU and quote target.
| SKU | Wattage-Lumens | Color Temperature |
|---|---|---|
| PTL-3ML9-30K/40K/50K-BLK | 20W/30W/40W/60W - 3,200/4,800/6,400/9,600 Lumens | 3000K/4000K/5000K Adjustable CCT |
| PTL-12ML24-30K/40K/50K-BLK | 80W/100W/120W/150W - 12,800/16,000/19,200/24,000 Lumens | 3000K/4000K/5000K Adjustable CCT |
Performance Specifications
All listed models use 120-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| PTL-12ML24-30K/40K/50K-BLK | 120W / 150W | 19,200 lm | 4000K / 5000K | ≥ 70 | ≥ 0.9 | |
| PTL-3ML9-30K/40K/50K-BLK | 20W / 30W / 40W / 60W / 80W / 100W | 3,200 lm / 4,800 lm / 6,400 lm / 9,600 lm / 12,800 lm / 16,000 lm | 3000K / 4000K / 5000K | ≥ 70 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Physical | |
| Weight | 3ML9 12.5 lbs.; 12ML24 12.8 lbs |
| Controls | |
| Dimming | 0-10V dimming driver standard. |
| Photocell | Pre-installed photocell; luminaire ships with photocell included. |
