10yr
warranty
Long-Term Warranty
Warranty coverage supports long-horizon maintenance planning for commercial retrofit projects.
Why Specify This Fixture
Product Highlights

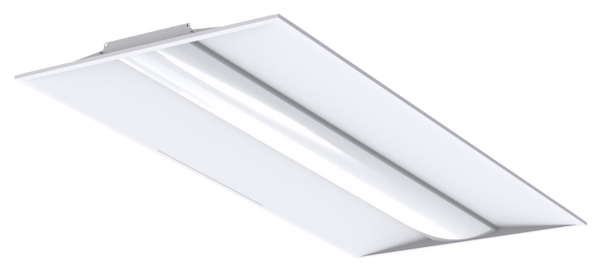

Panel Lights
3-in-1
selectable
Adjustable CCT & Wattage
Field-selectable wattage and CCT settings allow one SKU to cover multiple light-level targets.
Product Configuration Matrix
16W/20W/24W/27W - 2,000/2,500/3,000/3,375 Lumens · 3500K/4000K/5000K · 2ft x 2ft
Click another row to change the selected SKU and quote target.
| SKU | Wattage-Lumens | Color Temperature | Troffer Size | Status |
|---|---|---|---|---|
| JTRF-22-2ML3-35K/40K/50K-DTO | 16W/20W/24W/27W - 2,000/2,500/3,000/3,375 Lumens | 3500K/4000K/5000K | 2ft x 2ft | |
| JTRF-24-3ML6-35K/40K/50K-DTO | 30W/40W/45W/50W - 3,047/4,980/5,603/6,470 Lumens | 3500K/4000K/5000K | 2ft x 4ft |
Performance Specifications
| Model # | Wattage | Lumens | CCT | Input | CRI | PF | |
|---|---|---|---|---|---|---|---|
| JTRF-22-2ML3-35K-40K-50K-DTO-PRJNWYLW | 16W / 20W / 24W / 27W | 2,000 / 2,500 / 3,000 / 3,375 lm | 3500K / 4000K / 5000K | 277V 50/60Hz | ≥ 80 | ≥ 0.9 | |
| JTRF-24-3ML6-35K/40K/50K-DTO | 30W / 40W / 45W / 50W | 3,047 / 4,980 / 5,603 / 6,470 lm | 3500K / 4000K / 5000K | 120-277V 50/60Hz | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -20°C to 45° C Ambient (-4°F to 113°F) |
| Optical | |
| CCT | 3500K / 4000K / 5000K |
| Physical | |
| Weight | 22 5.5 lbs; 24 10.1 lbs; 22 23.7” 23.7” 1.6”; 24 47.8” 23.7” 1.6” |
