277V
max input
Voltage Compatibility
Supports 120-277V 50/60Hz input to match site power requirements.
Why Specify This Fixture
Product Highlights

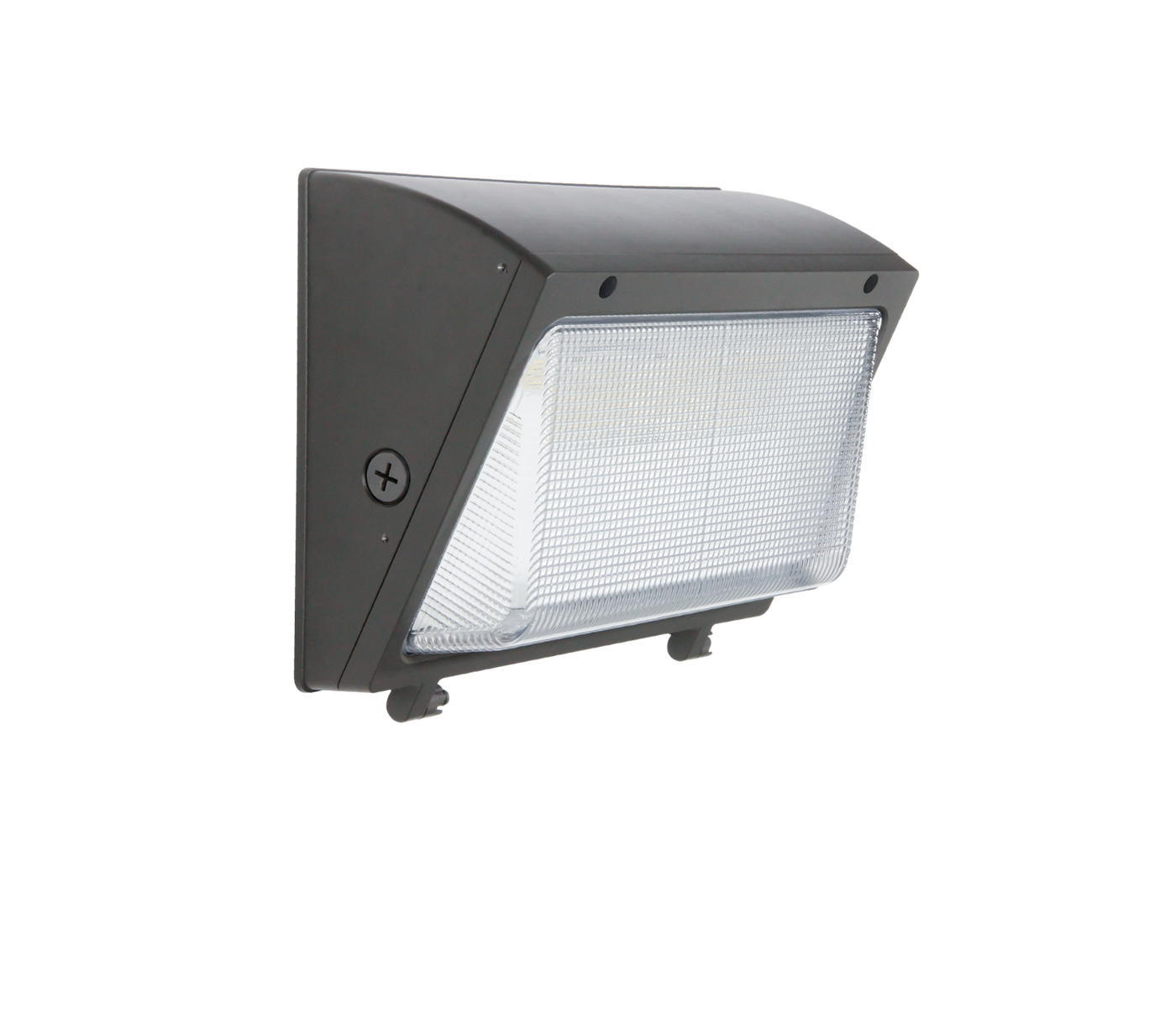

JPACK Wall Pack
Product Configuration Matrix
40W - 5,084 Lumens · None
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Accessory | Status |
|---|---|---|---|
| JPACK-5L-50K-UV-BRZ | 40W - 5,084 Lumens | None | |
| JPACK-5L-50K-UV-BRZ + A299 | 40W - 5,084 Lumens | 120-277V Photocell | |
| JPACK-5L-50K-UV-BRZ + A300 | 40W - 5,084 Lumens | 120V Photocell | |
| JPACK-7L-50K-UV-BRZ | 60w - 7,679 Lumens | None | |
| JPACK-7L-50K-UV-BRZ + A299 | 60w - 7,679 Lumens | 120-277V Photocell | |
| JPACK-7L-50K-UV-BRZ + A300 | 60w - 7,679 Lumens | 120V Photocell |
Performance Specifications
All listed models use 120-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| JPACK-5L-50K-UV-WALLPACK-HOUSING-TS-GWK05-40W-H | 40W | 5,084 lm | 5000K | ≥ 80 | ≥ 0.9 | |
| JPACK-7L-50K-UV-WALLPACK-HOUSING-TS-GWK05-60W-H | 60W | 7,679 lm | 5000K | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -40°C to 45°C Ambient (-40°F to 113°F) |
| Optical | |
| CCT | 5000K |
| Physical | |
| Weight | 5L 5.7 lbs; 7L 5.7 lbs |
