PC
lens
Polycarbonate Lens
Lens and optical package are designed to maintain uniform distribution and visual comfort on site.
Why Specify This Fixture
Product Highlights

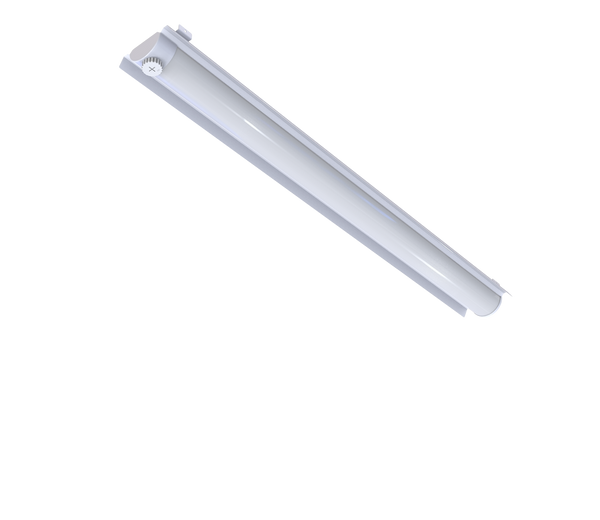

SRK Linear Strip Retrofit
Z10
receptacle
Z10 Accessory Ready
Pre-installed Z10 receptacle supports plug-in photocell, occupancy, and wireless control modules without rewiring.
3-in-1
selectable
Adjustable CCT & Wattage
Field-selectable wattage and CCT settings allow one SKU to cover multiple light-level targets.
10yr
warranty
Long-Term Warranty
Warranty coverage supports long-horizon maintenance planning for commercial retrofit projects.
Product Configuration Matrix
18W/ 25W/ 30W / 40W - 2,428/3,250/3,900/5,061 Lumens · 3500K/4000K/5000K · 4ft
Click another row to change the selected SKU and quote target.
| SKU | Wattage - Lumens | Color Temperature | Fixture Length |
|---|---|---|---|
| SRK-N-4-2ML5-35K/40K/50K-Z10R | 18W/ 25W/ 30W / 40W - 2,428/3,250/3,900/5,061 Lumens | 3500K/4000K/5000K | 4ft |
| SRK-N-8-5ML10-35K/40K/50K-Z10R | 46W / 60W / 70W / 80W - 5,980/ 8,005/ 9,092/ 10,133 Lumens | 3500K/4000K/5000K | 8ft |
Performance Specifications
All listed models use 120-277V 50/60Hz input.
| Model # | Wattage | Lumens | CCT | CRI | PF | |
|---|---|---|---|---|---|---|
| SRK-N-4-2ML5-35K/40K/50K-Z10R | 18 W / 25 W / 30 W / 40 W / 46 W / 60 W | 2,428 lm / 3,250 lm / 3,900 lm / 5,061 lm / 5,980 lm / 8,005 lm | 3500K / 4000K / 5000K | ≥ 80 | ≥ 0.9 | |
| SRK-N-8-5ML10-35K/40K/50K-Z10R | 70 W / 80 W | 9,092 lm / 10,133 lm | 4000K / 5000K | ≥ 80 | ≥ 0.9 |
Technical Specifications
| Electrical | |
|---|---|
| Input Voltage | 120-277V 50/60Hz |
| Power Factor | > 0.9 at full load |
| Thd | <20% full load |
| Operating temp | -20°C to 45°C Ambient (-4°F to 113°F) |
Compatible Accessories
Networked Lighting Controls
| Catalog Number | Description | Spec Sheet | Actions |
|---|---|---|---|
|
Jarvis Link Z10 Wireless Control Module (WCM) Bluetooth Z10 fixture controller; 0-10V dimming; IP65; White/Black/Bronze | Spec Sheet | View Product |
|
Jarvis Link Z10 PIR Motion Sensor + Photocell — Indoor/Outdoor Plug-in Z10 PIR + photocell; 8-40ft mount; UL8750 listed | Spec Sheet | View Product |
Other Accessories
| Catalog Number | Description | Spec Sheet | Actions |
|---|---|---|---|
|
Z10 PhotoMotion™ Custom Programming Remote Control PhotoMotion | Spec Sheet | View Product |
|
PIR Motion Sensor 120-277V Indoor Side Mount PhotoMotion™ Jarvis Lighting | Spec Sheet | View Product |
|
PhotoMotion™ Custom Programming Remote Control PhotoMotion | Spec Sheet | View Product |
