Jarvis Lighting LED parking garage fixtures deliver 3,600–10,000+ lumens across a 30–80W range for parking structures, covered walkways, canopies, soffits, and stairwells. The lineup includes the PGR-V series (selectable wattage/CCT, Z10-ready), PGC square eave/soffit lights, PG round garage lights with PhotoMotion sensor option, and CL-G2 slim surface-mount canopy lights. All are DLC-qualified, JarvisLink™ compatible, and backed by a 10-year warranty.
Specifications at a Glance
- Wattage: 30W – 80W (selectable on PGR-V)
- Output: 3,600 – 10,000+ lumens
- CCT: 3000K / 4000K / 5000K (selectable on PGR-V)
- Voltage: 120-277V, 50/60Hz
- Mounting: Surface, ceiling, pendant, soffit
- Controls: 0-10V dim, Z10 ready, JarvisLink™, PhotoMotion option
- Lens: UV-resistant polycarbonate (tamper-proof on CL-G2)
- Rating: UL Listed for wet/damp locations
Which parking garage fixture fits your application?
| Application | Recommended Series | Wattage | Key Feature | Replaces |
|---|---|---|---|---|

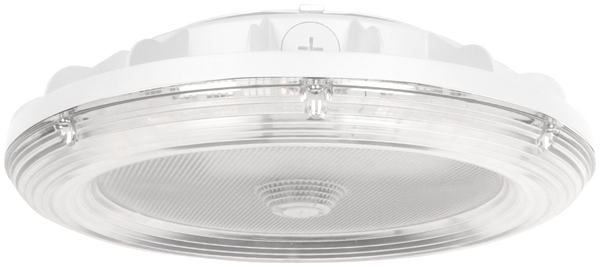

| Parking garage — open deck | PGR-V | 45/60/80W (selectable) | Z10 ready, JarvisLink™ | 150–250W HPS |
| Parking garage — low ceiling | PG Round | 30–60W | Slim profile, PhotoMotion option | 100–175W HPS |

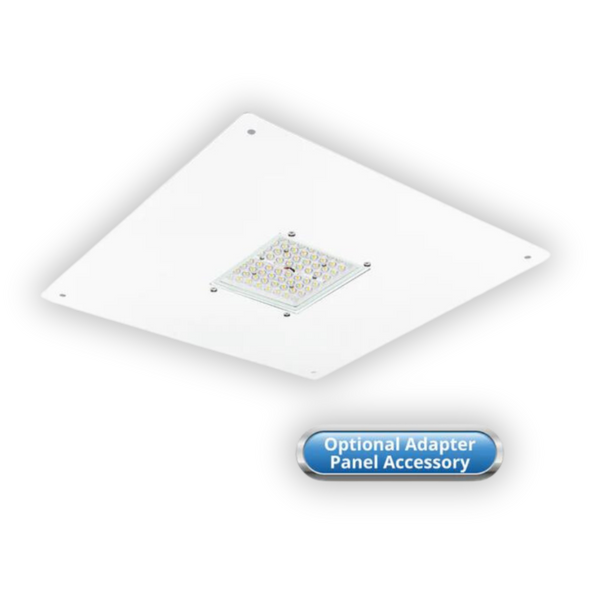

| Eave / soffit / entry canopy | PGC Square | 34–54W | Glass lens, retrofit adapter plate | 70–150W HPS |

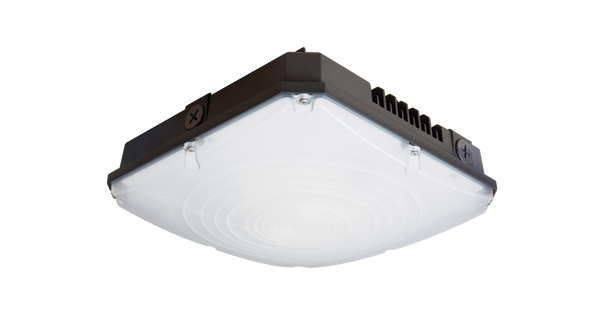

| Stairwell / covered walkway | CL-G2 Surface Mount | 30–50W | Tamper-proof lens, slim profile | 2-lamp T8 fluorescent |
